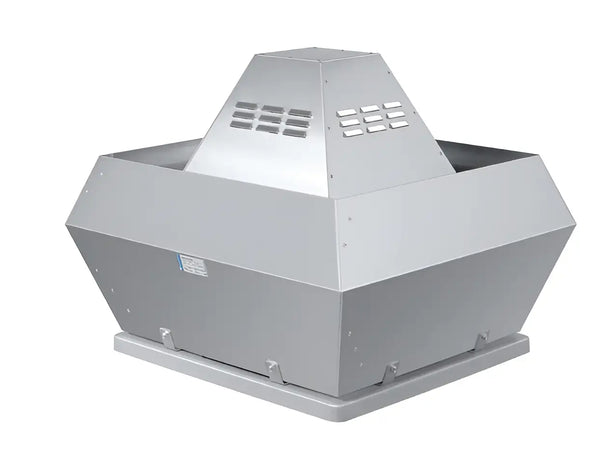

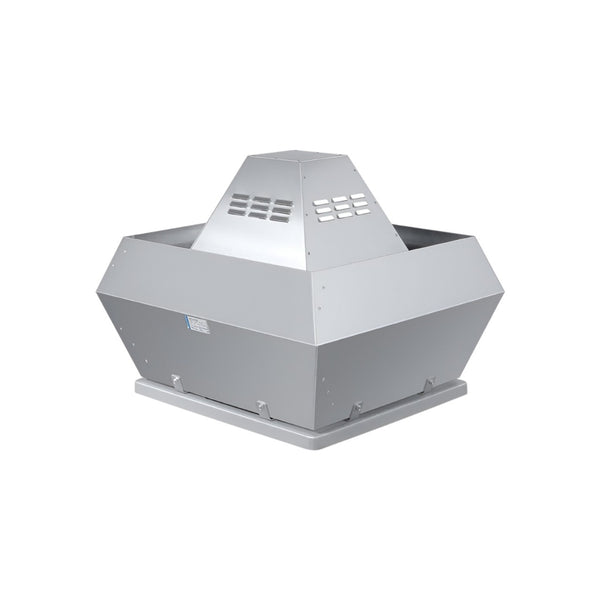

Systemair DVN 450D4 IE3 Centrifugal Roof Fan – Direct Driven, 120°C Continuous, Vertical Discharge, 6,080m³/h, Seawater-Resistant Aluminum, Powder-Coated Steel Frame

• High-Temperature Performance: Operates continuously with transported air temperatures up to 120°C, suitable for industrial and coastal environments.
• Durable Construction: Casing and backward-curved impeller made from seawater-resistant aluminum; base frame and guard powder-coated galvanised steel.
• Quiet & Stable Operation: Motor mounted on vibration dampers, with optional DVNI version featuring 50 mm mineral wool insulation for reduced sound levels.
• Motor Protection & Control: Single-phase motor speed-controllable via transformer; three-phase motor controllable via D/Y connection, with integral thermal contacts to prevent overheating.
• Efficient Vertical Discharge: Delivers 6,080m³/h airflow through vertical exhaust, ideal for roof ventilation with minimal noise.


The Systemair DVN 450D4 IE3 Centrifugal Roof Fan delivers high-performance ventilation with reliable operation for both industrial and coastal applications. Designed with a seawater-resistant aluminum casing and backward-curved impeller, this fan ensures durability even in harsh environments. Featuring a standard motor located outside the air stream, effective vibration dampers, and optional 50 mm mineral wool insulation (DVNI version) for lower sound levels, it operates continuously at temperatures up to 120°C. The motor is speed-controllable via transformer for single-phase models and D/Y connection for three-phase models, with integral thermal contacts for motor protection. Its vertical discharge design, combined with powder-coated galvanised steel base frame and integrated guard, makes this fan ideal for safe, efficient, and quiet roof ventilation.
