- High-Quality Construction: Aluzinc-coated steel housing with a stainless steel heating element for durability and long service life.
- Safe Operation: Integral overheating protection with manual reset ensures safe performance in all environments.
- Versatile Installation: Can be installed in horizontal or vertical ducts; rubber-sealed spigot connections provide a secure fit.
- Efficient Heating: 5kW power output, 400V 3-phase, suitable for minimum air volume of 180m³/h; ideal for room thermostat or Pulser control.
- Compact & Reliable: 200mm duct size, lightweight design (~5.5 kg), easy to integrate into existing HVAC systems.

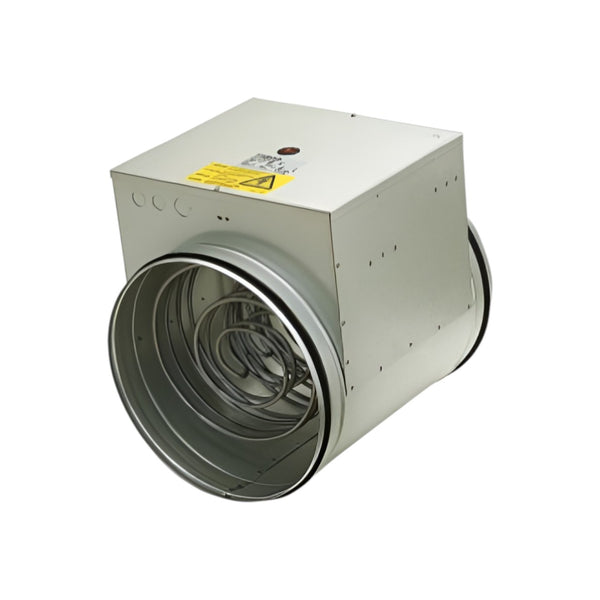

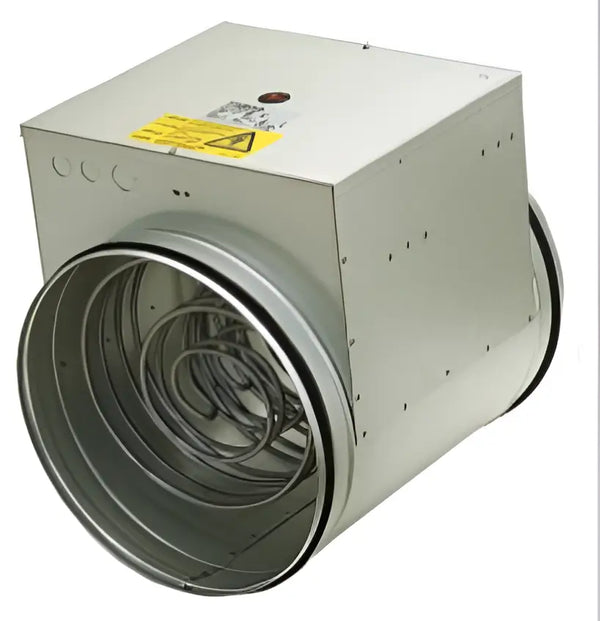

The Systemair CB 200-5,0 Round Duct Heater is a high-performance electric duct heater designed for standard spiral ducts, offering reliable and efficient heating for HVAC systems. Constructed with an Aluzinc-coated steel body and a stainless steel heating element, it provides durability and long-lasting performance. Equipped with integral overheating protection and a manual reset function, this heater ensures safe operation. Rubber-sealed spigot connections allow secure installation, and the unit can be controlled via a room thermostat or Pulser. Suitable for horizontal or vertical ducts (with the connection box installed correctly), it delivers a maximum output air temperature of 50°C while maintaining a minimum airflow of 180m³/h. Ideal for commercial and industrial applications, this duct heater combines safety, reliability, and easy installation.
