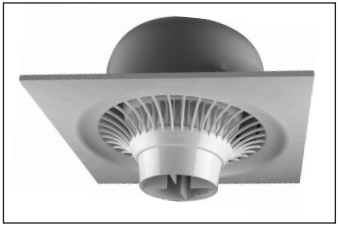

Suspended Ceiling Kit for Models 10–25, 600 × 600 mm Lay-In Ceiling Mount

Suspended Ceiling Kit for Models 10–25, 600 × 600 mm Lay-In Ceiling Mount

Name: Suspended Ceiling Kit for Models 10–25, 600 × 600 mm Lay-In Ceiling Mount
Brand: Airius
SKU: EX-S-10-25-CKIT
Price: 319.2 GBP
Availability: OutOfStock

£319.20

Sale Sold out

Tax included.

Description

Suspended Ceiling Mount: Designed as a 600 × 600 mm lay-in ceiling mount for compatible models 10–25.
Durable Housing: Constructed from PC/ABS resin with a 5VA flame resistance rating.
Ceiling Integration: Designed to allow the air column from the nozzle to remain unimpeded to the floor.
Installation Support: Compatible with professionally installed hooks, chains, cables, carabiners, bridle rings, beam clamps, and bolts capable of supporting the required load.
Model Compatibility: Includes a short 120 mm nozzle length for Model 10 and a standard 222 mm nozzle length for Models 15 and 25.
Compact Dimensions: Measures 600 mm × 600 mm with a 57 mm grill height.
Lightweight Construction: Weighs 3.6 kg and features a 413 mm dome diameter and 267 mm dome height.
Colour Options: Supplied in Cool Gray 2C, off-white as standard, with the option to be tailor painted to specified colour requirements.

The Suspended Ceiling Kit for Models 10–25 is designed for 600 × 600 mm lay-in ceiling installation. The housing is constructed from PC/ABS resin with a 5VA flame resistance rating. The kit is designed to support installation where the air column from the nozzle can travel unobstructed to the floor. Model 10 uses a short 120 mm nozzle, while Models 15 and 25 use a standard 222 mm nozzle. The unit measures 600 mm wide and 600 mm deep, with a 57 mm grill height, 413 mm dome diameter, 267 mm dome height, and 324 mm total height. It weighs 3.6 kg and is supplied in Cool Gray 2C, off-white as standard.

Specifications

Compatible Models: Models 10, 15, and 25
Mount Type: 600 × 600 mm lay-in ceiling mount
Housing Material: PC/ABS resin
Flame Resistance: 5VA
Weight: 3.6 kg
Width: 600 mm
Depth: 600 mm
Grill Height: 57 mm
Dome Diameter: 413 mm
Dome Height: 267 mm
Total Height: 324 mm
Model 10 Nozzle Length: 120 mm, Short
Models 15 & 25 Nozzle Length: 222 mm, Standard
Standard Colour: Cool Gray 2C, off-white
Colour Option: Tailor painted to specified colour requirements

Delivery & return policy

Delivery time: 7 working day delivery, delivered on a pallet.

Warranty

Documents

Airius-Suspended-Series-Models-10-15-25-Data-Sheet
