- Manual 5-Step Fan Speed Control: Designed to regulate fan speed through five fixed voltage steps, allowing precise adjustment of airflow levels in ventilation and HVAC systems.
- Single-Phase Transformer Operation: Works with a 230V single-phase power supply and adjusts motor voltage to control fan performance efficiently.
- Dual Speed Switching Capability: Includes two control switches for higher and lower fan speeds, with switching managed via an external change-over contact such as a thermostat or timer.
- Integrated Indicator & Resettable Fuse: Front indicator lamp shows operational status, while the external resettable fuse allows convenient maintenance and system protection.
- Durable Protective Housing: Constructed with a self-extinguishing thermoplastic casing and IP54 enclosure rating for reliable protection against dust and moisture in industrial environments.

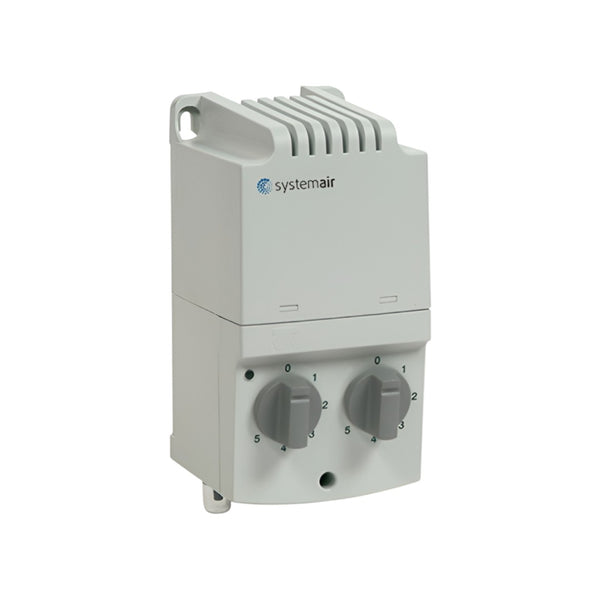

The REU 5 Speed Control is a reliable single-phase transformer designed to regulate fan speed by adjusting the supply voltage in five fixed manual steps. Operated through a convenient front-mounted control knob, the unit allows precise adjustment of airflow for ventilation systems and HVAC applications. It features two control switches that manage higher and lower fan speeds, while switching between these settings can be achieved through an external change-over contact such as a thermostat or timer. An indicator lamp on the front clearly shows when the transformer is in operation, and the resettable fuse can be accessed externally for easy maintenance. Built with a durable self-extinguishing thermoplastic casing and an IP54 enclosure rating, the controller provides dependable performance and protection in demanding environments. It operates on a 230V supply with 50/60 Hz frequency and is suitable for systems where controlled fan speed adjustment is required.
