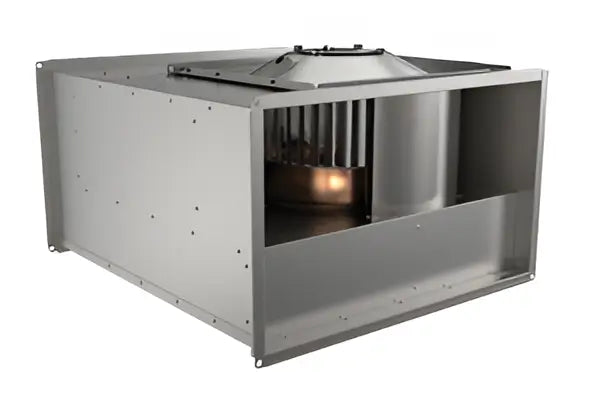

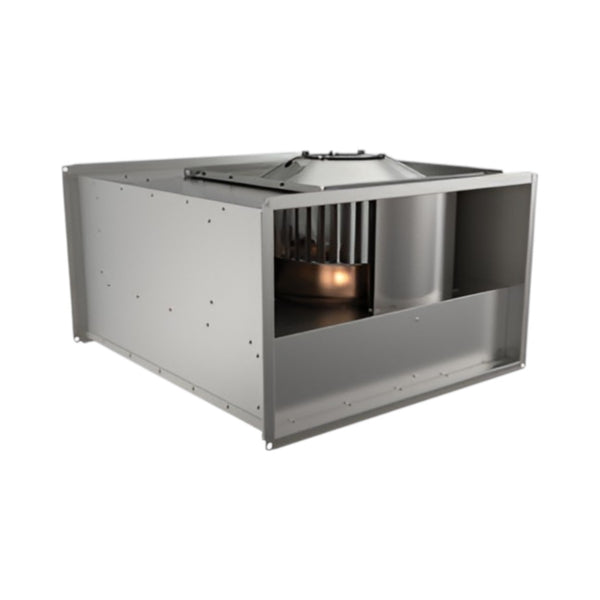

KTEX 60-30-4 ATEX Rectangular Duct Fan– 3-Phase 400V, Explosion-Proof, 300x600mm, Galvanised Steel, 3,200m³/h

£1,791.63
£1,791.63
Sale Sold out
Tax included.

Description
  • ATEX Explosion-Proof Design: Certified εx II 2G for safe operation in hazardous and industrial environments.
  • High-Performance Airflow: Delivers up to 3,200 m³/h at 1330 rpm for efficient duct ventilation.
  • Durable Construction: Galvanised steel casing with copper inlet cone ensures long-lasting, maintenance-free use.
  • Motor Protection: Integral PTC thermistors safeguard the motor; compatible with U-EK230E relay.
  • Versatile & Controllable: Forward-curved impeller with controllable speed for precise airflow adjustment.

The KTEX 60-30-4 ATEX Rectangular Duct Fan from Systemair is a versatile, explosion-proof fan designed for industrial environments requiring safe airflow management. Built with a galvanised steel casing and copper inlet cone, this fan features a forward-curved impeller and external rotor motor, making it maintenance-free and reliable. Equipped with integral PTC thermistors and compatible with the U-EK230E motor protection relay, it ensures motor safety while offering controllable speed. Certified according to ATEX (εx II 2G) and compliant with EN 50014, EN 50019, EN 1127-1, and EN 13463-1, it guarantees safe operation in hazardous zones. Ideal for ducted installations, it delivers up to 3,200 m³/h airflow at 1330 rpm, with a sound pressure level of 58 dB(A).

  • Brand: Systemair
  • Weight: 30.8 kg
  • Material: Galvanised sheet steel with copper inlet cone
  • Voltage: 400 V, 3-phase
  • Frequency: 50 Hz
  • Input Power (P1): 1300 W
  • Current: 2.2 A
  • Max Airflow: 3,200 m³/h (0.819 m³/s)
  • RPM: 1330 r.p.m.
  • Static Pressure: 225 Pa
  • Temperature Range (Ambient & Duct): -60 °C
  • Sound Pressure Level (3 m): 58 dB(A)
  • Insulation Class: F
  • Motor Enclosure: IP44
  • Colour: Galvanised steel (silver-grey)

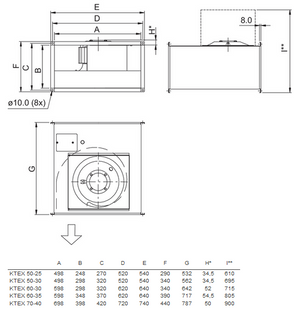

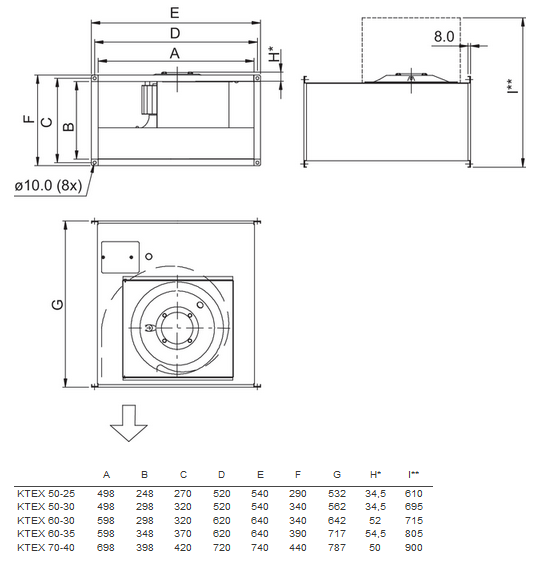

  • Dimensions (Connections): 300 x 600 mm
  • Product Code: 19406
