- High-Efficiency Heating: Delivers 9kW of power and 430m³/h airflow, ideal for commercial HVAC ducts. Ensures rapid and even heat distribution in filtered air systems.
- Safety First Design: Equipped with dual overheating cut-outs and one manual reset for extra protection. Built-in airflow sensor prevents heating without sufficient airflow.
- Durable Construction: Robust grey metal casing suitable for horizontal or vertical duct installation. Designed for use in non-combustible, temperature-resistant duct materials.
- Easy Installation: Connects via fixed round cable with proper cable glands; a multi-pole switch required. Fitting orientation can be up, down, or sideways up to 90° for flexible setups.
- Certified & Compliant: CE, S, and EMC marked; conforms to SEMKO 111 FA 1982 / EN 60335 / EN 61000 standards.

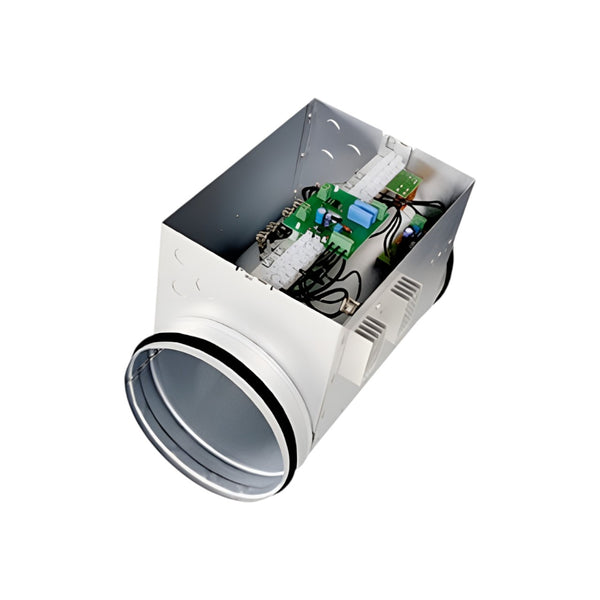

The Systemair CBMF 315-9,0 duct heater is a high-performance, 3-phase 400V heating solution designed for commercial and industrial HVAC systems. Built with a robust metal casing in grey, this heater delivers 9kW of heat with an airflow capacity of 430m³/h. It features a built-in electronic interlocking airflow sensor for safe operation, preventing the elements from heating without sufficient airflow. CE, S, and EMC marked, it ensures compliance with SEMKO 111 FA 1982 / EN 60335 / EN 61000 standards. Easy to install in horizontal or vertical ducts, the heater requires connection via fixed round cable and includes dual overheating cut-outs (one manual reset) for safety. Ideal for filtered air systems, it is maintenance-free apart from periodic functional checks, making it a reliable and safe choice for ducted air heating applications.
