DKEX 225-4 ATEX Rectangular Duct Fan – 3-Phase 230V Explosion Proof, Forward-Curved Impeller, Galvanised Steel, 1,840 m³/h, IP44, 14.9 kg

£1,393.25
£1,393.25
Sale Sold out
Tax included.

Description
  • ATEX Certified & Explosion Proof: Complies with EN 50014, EN 50019, EN 1127-1, EN 13463-1 for safe use in hazardous environments.
  • High-Performance Airflow: Delivers 1,840 m³/h with a forward-curved impeller for efficient ventilation.
  • Durable Construction: Galvanised sheet steel casing with copper inlet cone ensures long-lasting industrial use.
  • Motor Protection: Integral PTC thermistors prevent overheating; speed-controllable for flexible operation.
  • Compact & Versatile: Can be installed in any position; lightweight design at 14.9 kg for easy handling.

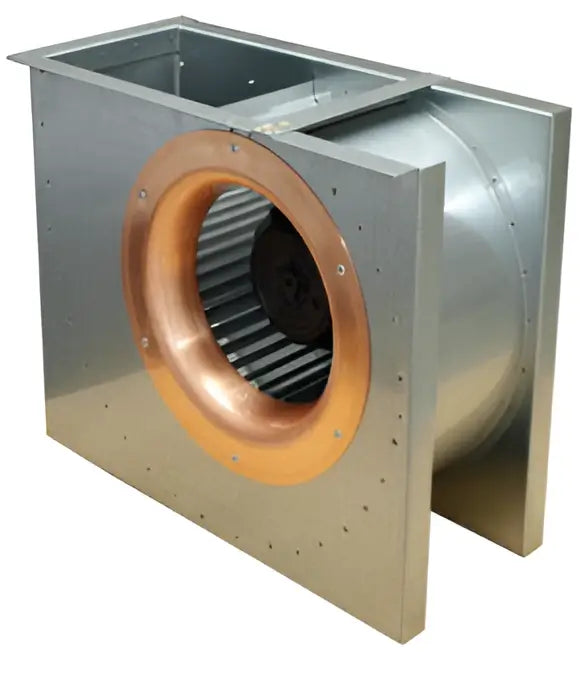

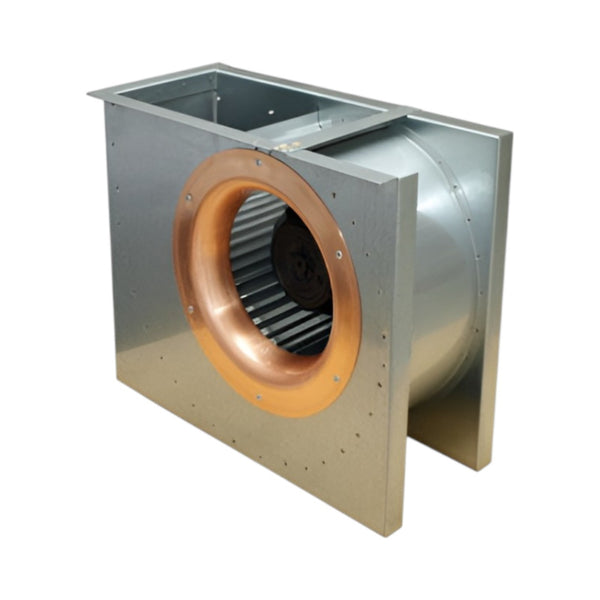

The DKEX 225-4 ATEX Rectangular Duct Fan is a versatile, compact fan suitable for installation in any orientation, designed for demanding environments like battery-charging rooms and fume cupboards. Featuring a galvanised sheet steel casing with a copper inlet cone and forward-curved impellers, it delivers a maximum airflow of 1,840 m³/h while ensuring motor protection through built-in PTC thermistors. Explosion-proof and certified to ATEX standards, it combines safety, reliability, and controllable speed operation. Ideal for industrial applications requiring durable, high-performance ventilation, this fan operates at 230V 3-phase, 50 Hz, with a sound pressure level of 53.7 dB at 3 meters.

  • Product Code: 19963
  • Voltage: 230V, 3-phase
  • Frequency: 50 Hz
  • Power (P1): 490 W
  • Current: 1.47 A
  • Max Airflow: 1,840 m³/h (0.41 m³/s)
  • R.P.M.: 1,305 r.p.m.
  • Min Static Back Pressure: 90 Pa
  • Temperature Range: -60°C (ambient and duct)
  • Sound Pressure Level: 53.7 dB at 3 m
  • Insulation Class: F
  • Enclosure Class: IP44
  • Material: Galvanised steel casing with copper inlet cone
  • Approx. Weight: 14.9 kg
  • Colour: Metallic Silver / Copper inlet
