- Dual-Purpose Functionality: Provides standard ventilation during normal operation and efficient smoke/heat extraction in fire scenarios.
- High-Temperature Rated: Continuous operation up to 120°C; tested to withstand 400°C for 2 hours (F400), ensuring fire safety compliance.
- Durable Construction: Zinc-magnesium coated steel casing with backward-curved pre-galvanized steel impeller for long-lasting performance.
- Flexible Installation: Motor outside the air stream, flange connection (30 mm), can be installed in any orientation indoors or outdoors outside the fire zone.
- Certified & Reliable: Equipped with IE2/IE3 single-speed motors with PTC thermal protection, compliant with EN 12101-3 by BSI, UK.

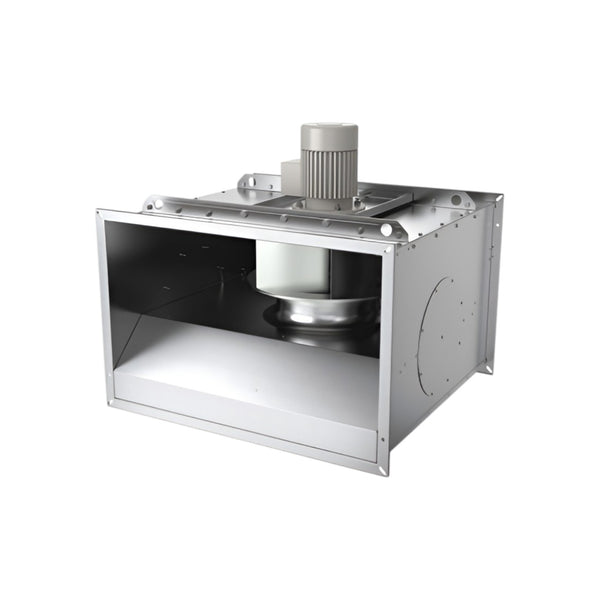

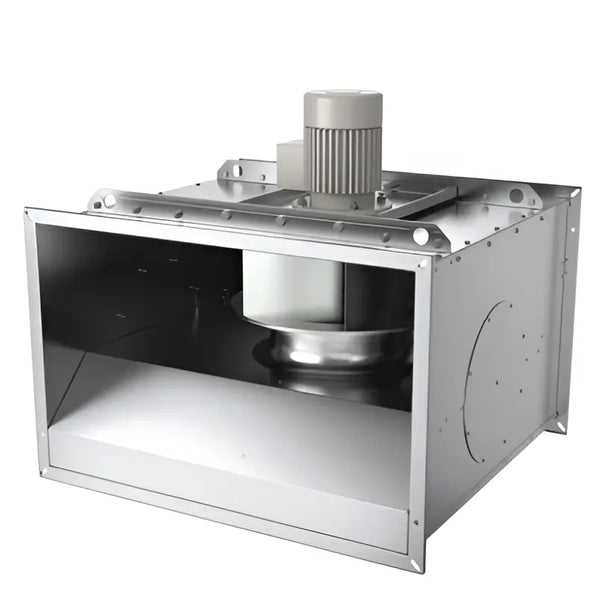

The BKF 315D4-6-XL/F400 smoke extract centrifugal fan is a dual-purpose solution designed for both normal ventilation and emergency smoke and heat extraction. Engineered to provide smoke-free escape routes, it ensures safe egress and assists fire department access while extracting harmful gases to reduce building damage. Tested for continuous operation up to 120°C and certified to 400°C for 2 hours, this fan features a zinc-magnesium coated steel casing, backward-curved impeller, and motor positioned outside the air stream for safety. Suitable for a wide range of applications including malls, garages, warehouses, and kitchen exhaust, it can operate in all positions with flange connections, providing reliable performance in both indoor and outdoor installations.
