5 Amp Speed Controller for 230V Fans and Pumps with 5-Step Manual Control

5 Amp Speed Controller for 230V Fans and Pumps with 5-Step Manual Control

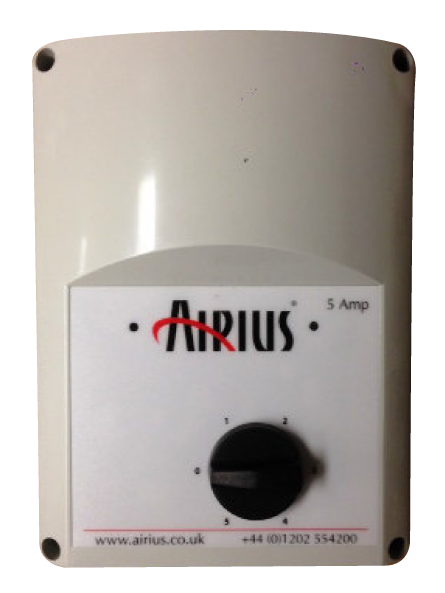

Name: 5 Amp Speed Controller for 230V Fans and Pumps with 5-Step Manual Control
Brand: Airius
SKU: STR-1-50L22-AUS-10
Price: 249.9 GBP
Availability: OutOfStock

£249.90

Sale Sold out

Tax included.

Model:

10
15
25
45
60

Description

5-Step Speed Control: Provides manual five-step control of fan speed, allowing operation from full speed to lower speed levels.
Voltage Control: Uses transformer-based voltage control with autotransformers for regulating the speed of voltage-controllable motors.
5 Amp Capacity: Supports a maximum current of 5.0 A and uses an FT-8.0 A fuse.
Flexible Applications: Suitable for voltage-controllable 230V, 50/60Hz motors used in fans, pumps, and similar equipment.
Noise & Draught Control: Allows fans to operate at full speed while warming a space before reducing speed for applications sensitive to noise and draughts.
Lower Installation Heights: Allows fans to be fitted at lower heights than originally intended.
Durable Enclosure: Available with a grey R-ABS plastic or sheet steel enclosure with polyester powder coating.
Maintenance Requirements: Normally maintenance-free, with cleaning recommended when the controller becomes soiled.

The 5 Amp Speed Controller provides five-step manual control for voltage-controllable motors operating at 230V, 50/60Hz. It uses transformer-based voltage control with autotransformers to vary motor speed for fans, pumps, and similar equipment. The controller allows fans to operate at full speed while a space is warming up before being reduced to a lower speed level where noise and draughts need to be minimised. It can also allow fans to be installed at lower heights than intended. The controller has a maximum current rating of 5.0 A, uses an FT-8.0 A fuse, and has a maximum ambient temperature of 35°C. It is designed for smooth-surface mounting and requires appropriate electrical connections and protection.

Specifications

Voltage: 230 VAC, 50/60 Hz

Maximum Current: 5.0 A

Fuse: FT-8.0 A

Control Type: 5-step manual speed control

Control Principle: Voltage control with autotransformers

Motor Compatibility: Voltage-controllable motors

Motor Voltage: 230 V, 50/60 Hz

Applications: Fans, pumps, and similar voltage-controllable motors

Enclosure: R-ABS plastic, UL94-V0, grey RAL 7035, or sheet steel with polyester powder coating

Recommended Primary Fuse: Approximately 1.5 × transformer rating

Maximum Ambient Temperature: 35°C

Mounting: Smooth surface

Maintenance: Normally maintenance-free

Delivery & return policy

Delivery time: 7 working day delivery, delivered on a pallet.

Warranty

Documents

SC5_controller_datasheet.pdf
