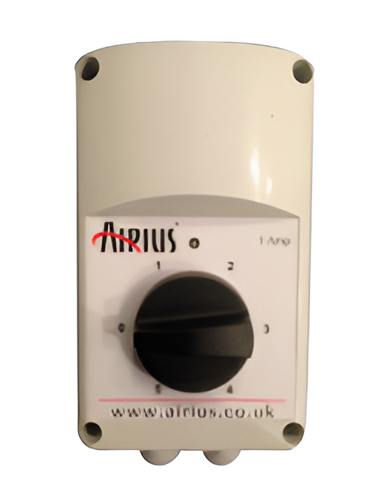

1 Amp 5-Step Manual Speed Controller for 230V Fans

1 Amp 5-Step Manual Speed Controller for 230V Fans

Name: 1 Amp 5-Step Manual Speed Controller for 230V Fans
Brand: Airius
SKU: STR-1-10L10-AUS-10
Price: 153.0 GBP
Availability: OutOfStock

£153.00

Sale Sold out

Tax included.

Model:

10
15
25
45
60

Description

5-Step Speed Control: Provides five manual speed settings for adjusting fan speed according to application requirements.
Adjustable Fan Operation: Allows fans to operate at full speed during warm-up and at a lower speed when reduced airflow is required.
Noise & Draught Control: Suitable for applications where noise and draught sensitivity require controlled fan operation.
Voltage Control: Uses an autotransformer-based voltage control system for speed adjustment of voltage-controllable 230V motors.
Motor Compatibility: Designed for voltage-controllable motors operating at 230V and 50/60Hz.
Electrical Rating: Operates at 230Vac, 50/60Hz with a maximum current rating of 1.0A.
IP54 Protection: Features an IP54-rated enclosure for protection in suitable installation environments.
Operating Temperature: Designed for a maximum ambient temperature of 35°C.|

The 1 Amp Speed Controller provides five-step manual control for varying the speed of compatible 230V fans. It uses voltage control through an autotransformer to adjust the speed of voltage-controllable motors. The controller allows fans to operate at full speed when required and at lower speeds when reduced airflow, noise or draughts need to be controlled. It operates at 230Vac and 50/60Hz, with a maximum current rating of 1.0A. The controller features an IP54-rated enclosure and is designed for a maximum ambient temperature of 35°C. It is intended for installation on a smooth surface with appropriate connections for the voltage supply, motor and earth. Under normal conditions, the controller is maintenance-free.

Specifications

Voltage: 230Vac, 50/60Hz

Maximum Current: 1.0A

Speed Settings: 5-step manual control

Control Type: Autotransformer voltage control

Motor Compatibility: Voltage-controllable motors

Motor Voltage: 230V

IP Rating: IP54

Maximum Ambient Temperature: 35°C

Enclosure: Plastic R-ABS, UL94-V0, grey RAL 7035, or sheet steel RAL 7032 with polyester powder coating

Recommended Primary Fuse: Approximately 1.5 × transformer rating

Fuse: FT-1.25A

Delivery & return policy

Delivery time: 7 working day delivery, delivered on a pallet.

Warranty

Documents

Speed-Controller-Installation-Guide-1-Amp
