- High-Efficiency Heating: 9kW power output with 400V/3-phase voltage, suitable for standard circular duct systems.
- Precision Temperature Control: Integrated electronic regulator using Pulse/Pause technology ensures accurate and stable heating.
- Durable Construction: Made with Aluzinc-coated sheet steel and stainless steel heating elements for long-lasting performance.
- Safety Features: Includes integral overheating protection with manual reset, rubber seals, and terminals for interlocking with airflow/pressure guards.
- Quiet & Maintenance-Free: Thyristor-based temperature adjustment with no moving parts, providing silent operation and minimal wear.

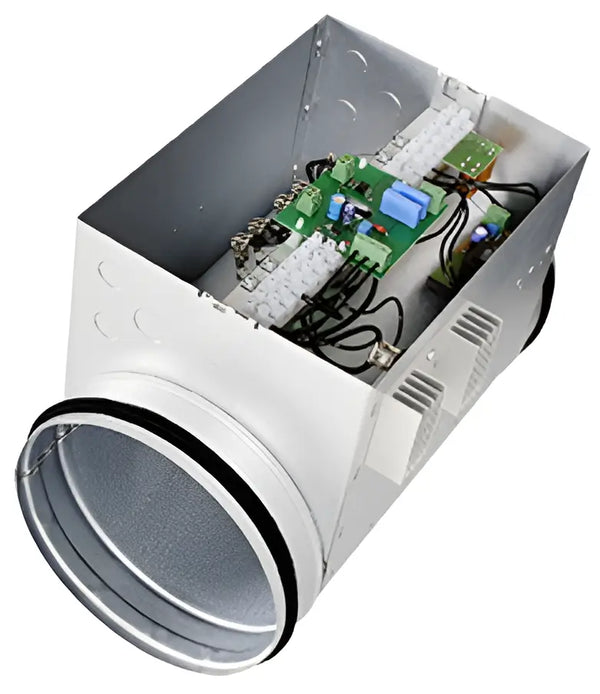

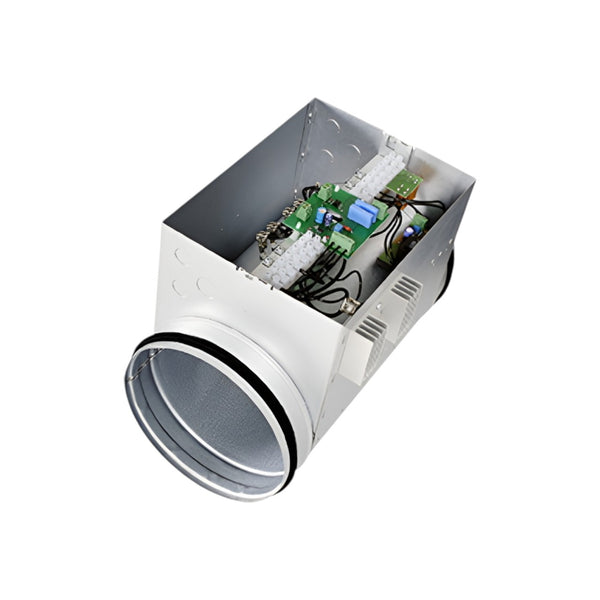

The Systemair CBM 400-9,0 duct heater is designed for efficient heating of standard spiral circular ducts, delivering 9kW of power at 400V/3-phase. Constructed from durable Aluzinc-coated sheet steel with a stainless steel heating element, it features precise electronic temperature control using time-proportional Pulse/Pause technology and a thyristor regulator, ensuring silent operation without wear. Integral overheating protection with manual reset, rubber seals on connecting spigots, and terminals for interlocking with pressure and airflow guards provide safe and reliable performance. Suitable for a maximum output air temperature of 50°C, this duct heater supports a minimum air volume of 700m³/h. Ideal for both commercial and industrial ventilation systems.
